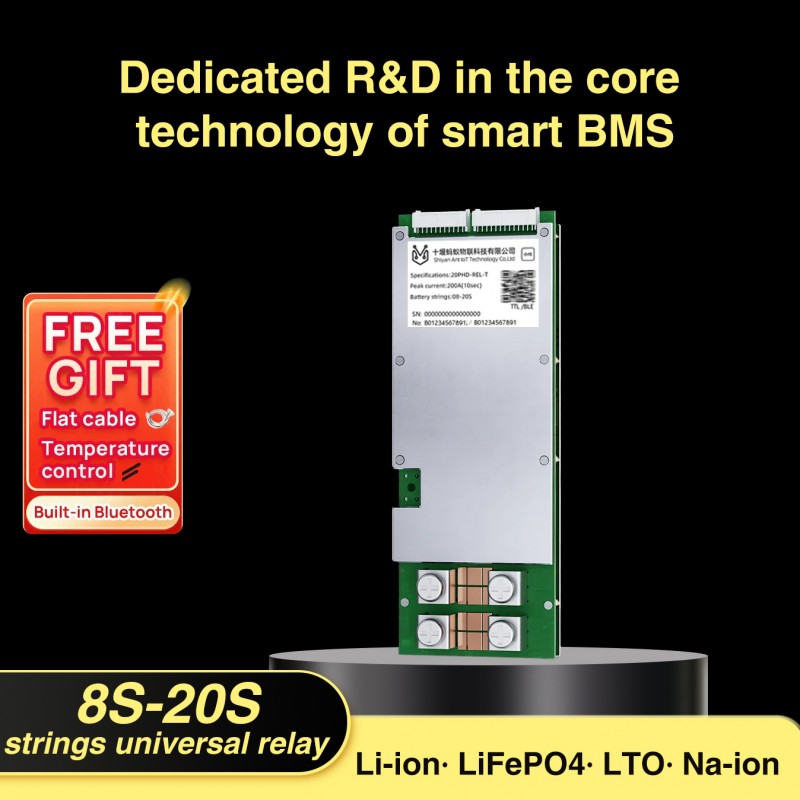

With Relay 8S-20S 21S-30S Battery Protection Board Li-ion BMS & Bluetooth – Must Wire External Contactor for EV/Solar/UPS

$82.00
Tax excluded

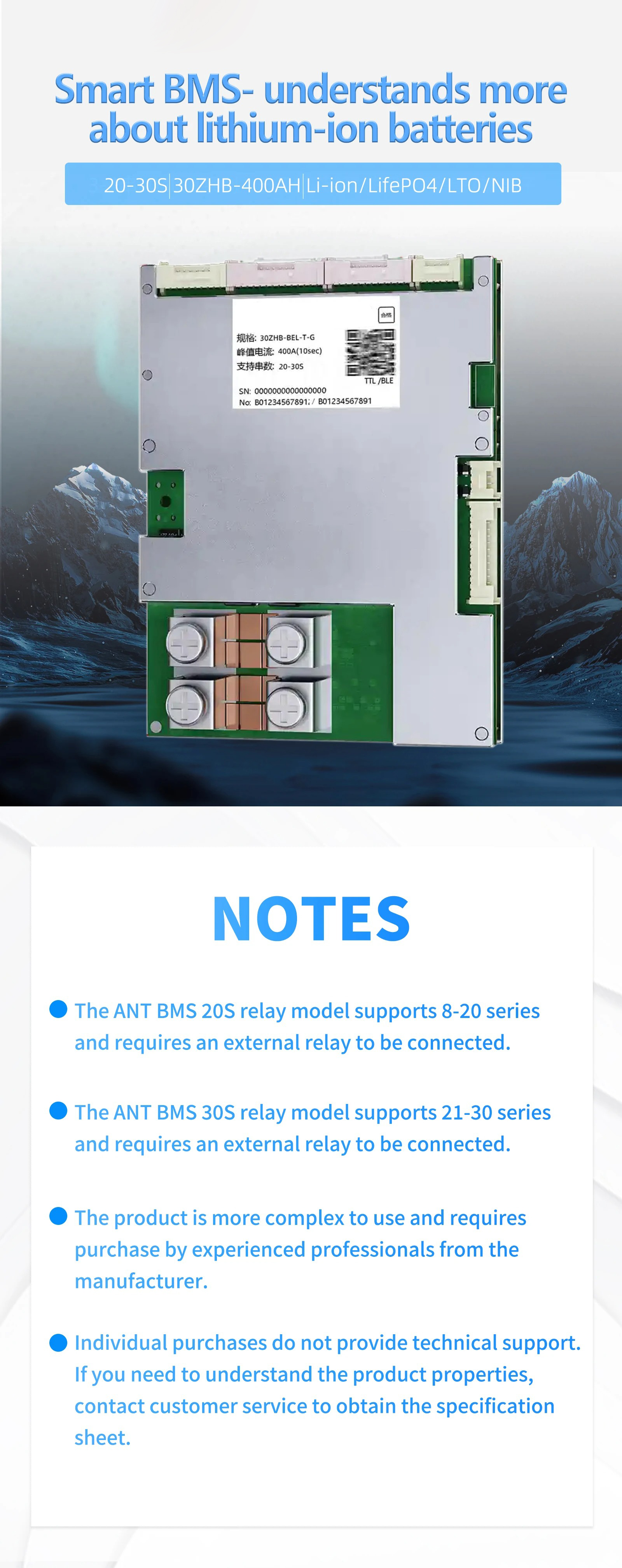

 Number of Battery Strings:Relay BMS 8S-20S, Relay BMS21S-30S.

● Power supply mode:The battery pack is self-powered and 24-112V DC input.
●Single cell voltage detection range:0-5V,error<20mV over full operating range,Typical error value<10mV.
● Support single cell voltage dropout detection.

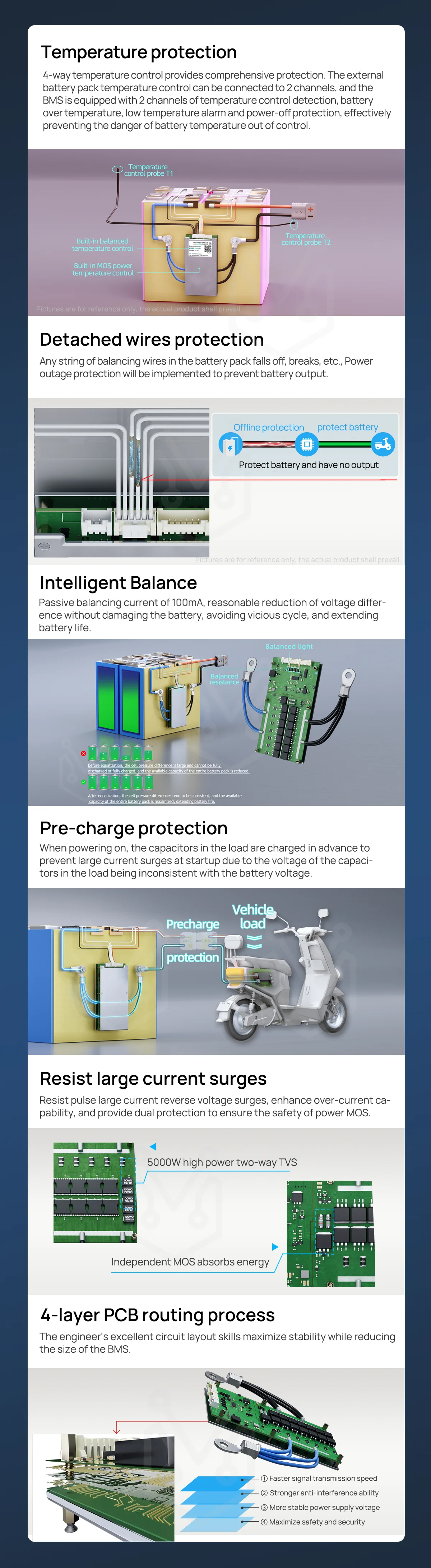

● Balance current:100mA,Passive balance.
● Wiring method:same port.
● Short Circuit Protection:Support..

Quantity



Security policy (edit with Customer reassurance module)



Delivery policy (edit with Customer reassurance module)



Return policy (edit with Customer reassurance module)

roduct Name with Relay Battery Protection Board
Bluetooth Built-in Bluetooth
Number of Battery Strings 8S-20S 21S-30S.
Power supply mode The battery pack is self-powered and 24-112V DC input.
Single cell voltage detection range 0-5V,error<20mV over full operating range,Typical error value <10mV.<
Single Cell Voltage Dropout Detection Supported
Balance current 100mA,Passive balance.
Wiring method same port.

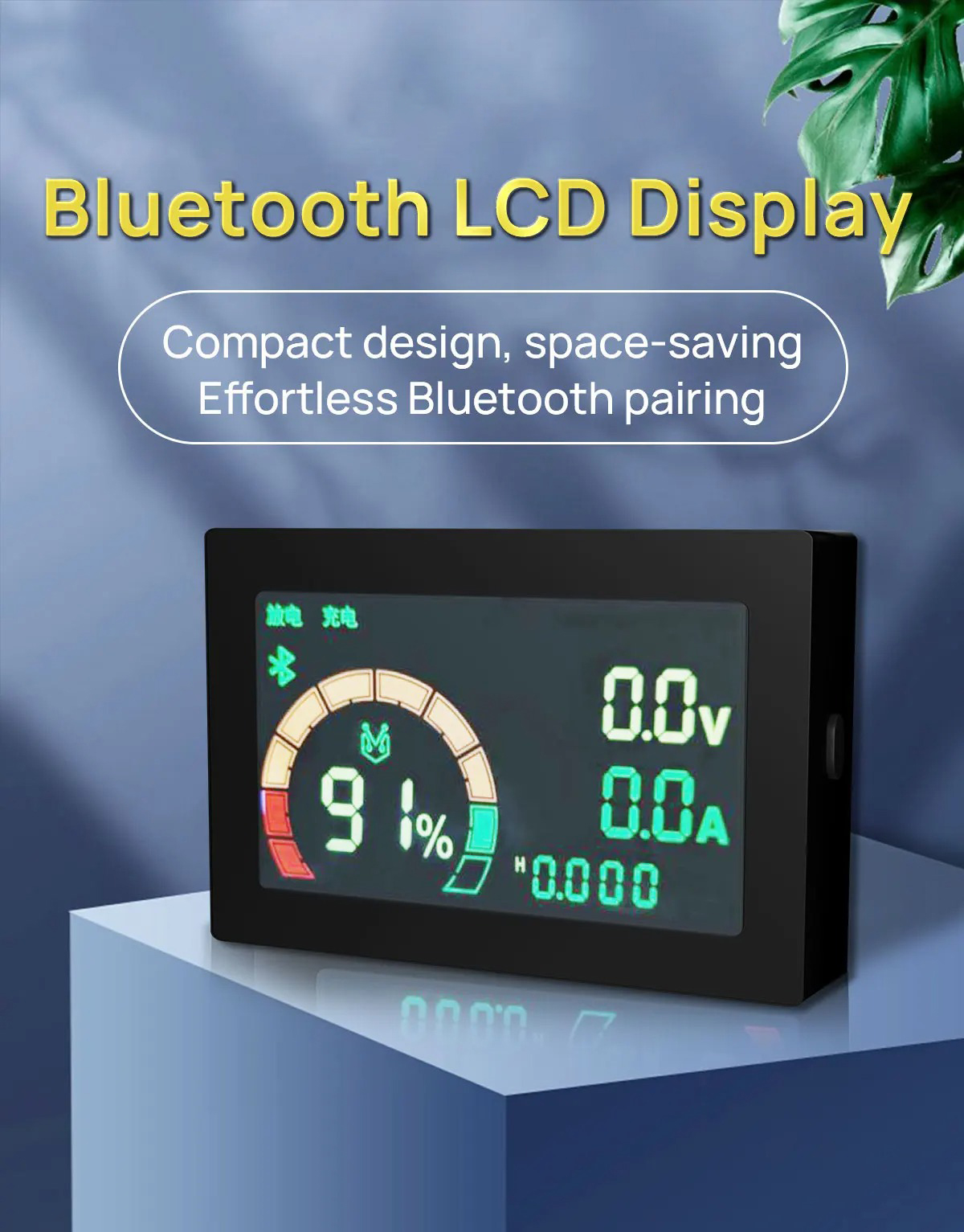

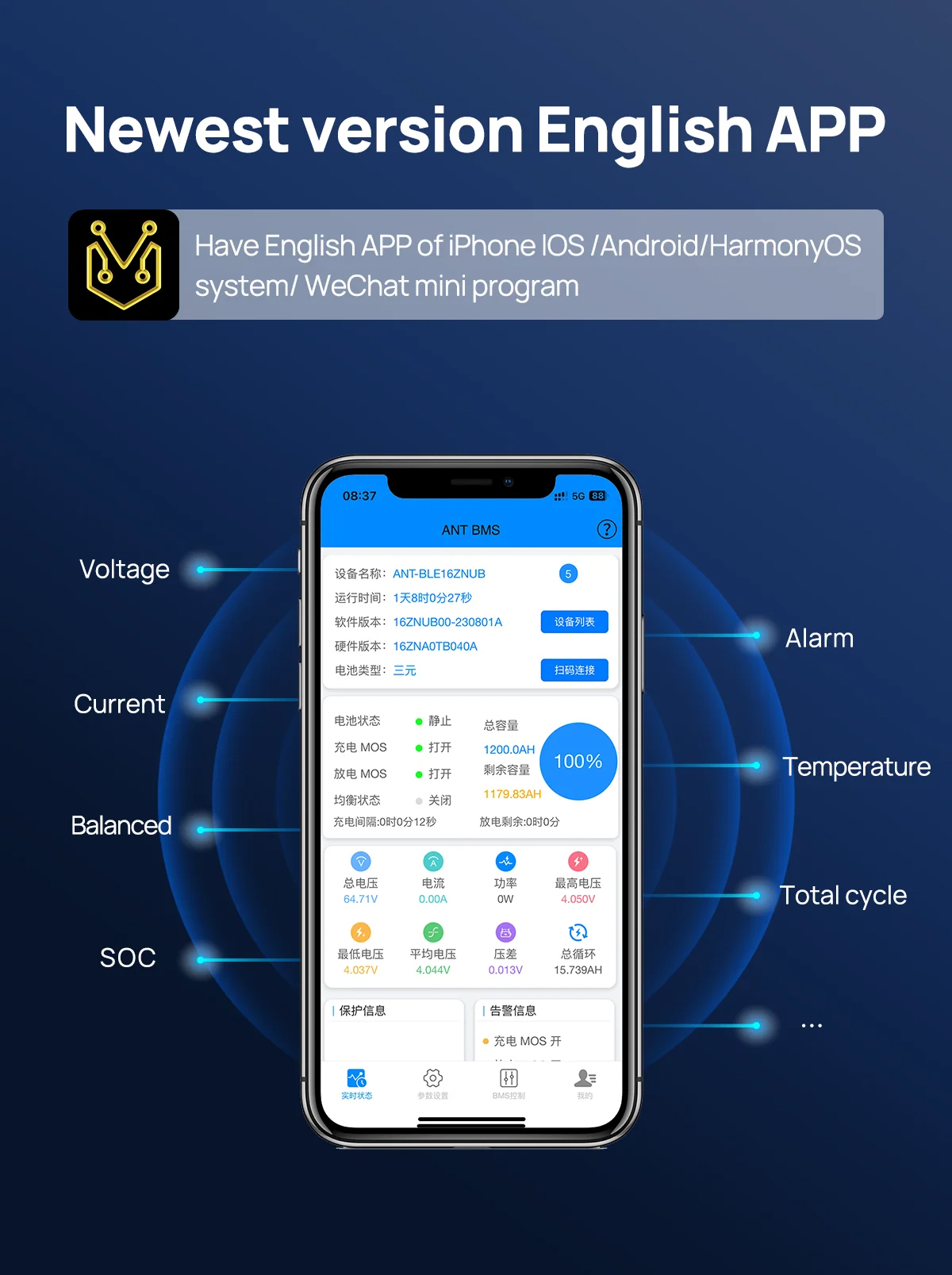

Bluetooth Function Bluetooth Built-in,Support for Android /IOS Phone.
Temperature detection -40 to125℃.
Total voltage detection Detection range 0-100V,<0.5%FSR(FSR=full scale).
Current Sense Shunt -150A~300A,Error<0.5%FSR.
SoC estimation accuracy Error<8%(operating conditions).
Battery remaining capacity error range is less than 8%<0.5%FSR.
Total Cycle AH Accumulated value, half of the charging and discharging values
Short Circuit Protection Support.,Supported (adjustable)<0.5%FSR.
Fault Records Supported (400 cycle records)
Operating Power Consumption < 4mA<0.5%FSR.
Standby power consumption < 2mA
Operating power consumption <5mA(without communication)/15mA(485/CAN).
Operating Temperature -40 to 85°C.
Storing Temperature -40 to 95℃.<0.5%FSR.
