E-Bike Charger C150 54.6V 3A | 48V Universal Li-ion, Smart Protection

$32.99
Tax excluded

About this item

  • AC to DC 54.6V 3A Battery Charger XLR: AC Input 100-240V, Output: 54.6V 3A, 50-60 Hz, designed for 48v lithium battery pack, Don’t use it for Lead Acid battery pack.
  • 4 Multiple Output Heads: DC 5.5*2.5mm , 5.5*2.1mm 1-Prong male plug, 8 Prong female plug and 3 pin XLR male connector
  • 48V Fast Charging Lithium Charger with LED Indicator: lamp glows red when charging and green when charging is complete
  • How to use 48v Lithium Battery Charger: Dowload PDF User Manual by the link in this detail page, then you can follow the instruction step by step
AC Plug
DC Plug
Quantity



Security policy (edit with Customer reassurance module)



Delivery policy (edit with Customer reassurance module)



Return policy (edit with Customer reassurance module)

Product description

Specifications:


Model: C150-V546A30
Case Material: plastic

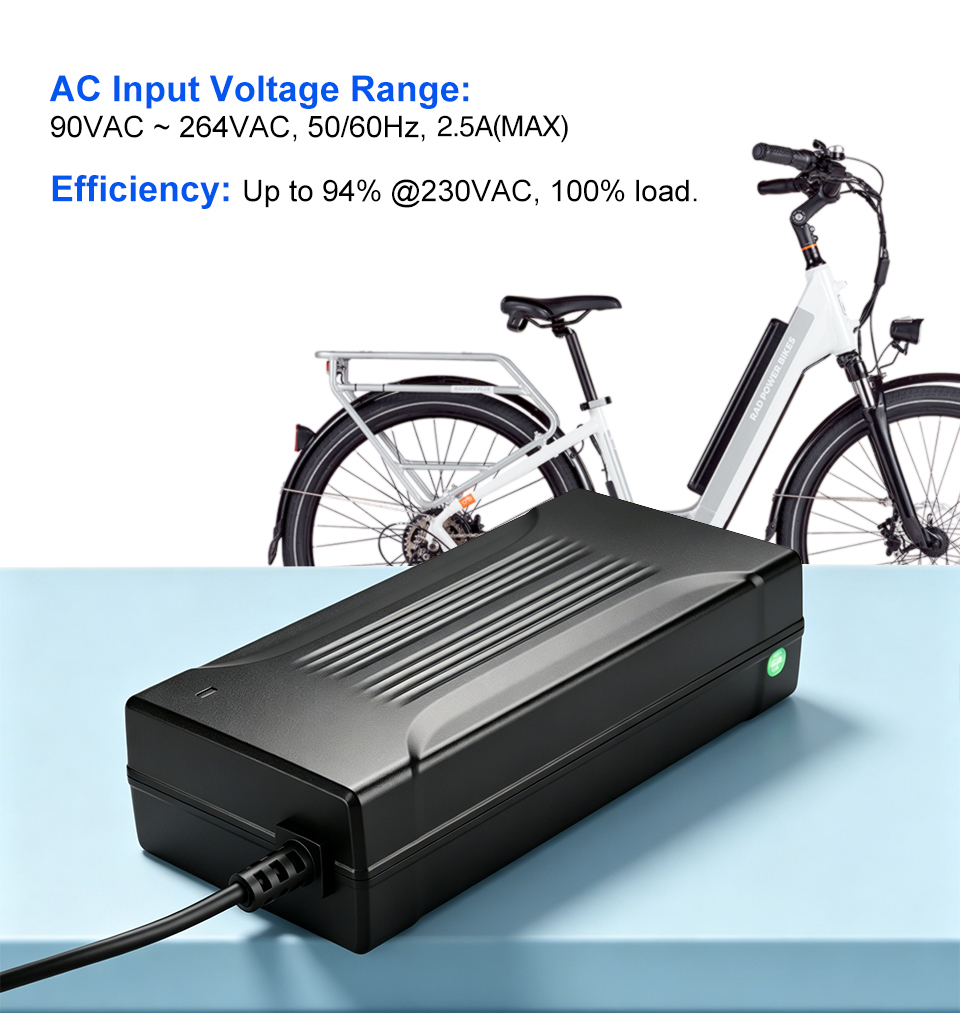

Input Voltage: 100~264VAC
Rated Voltage&Current: 54.6V/4A
Frequency: 47-63Hz
Rated Power: 163.8W

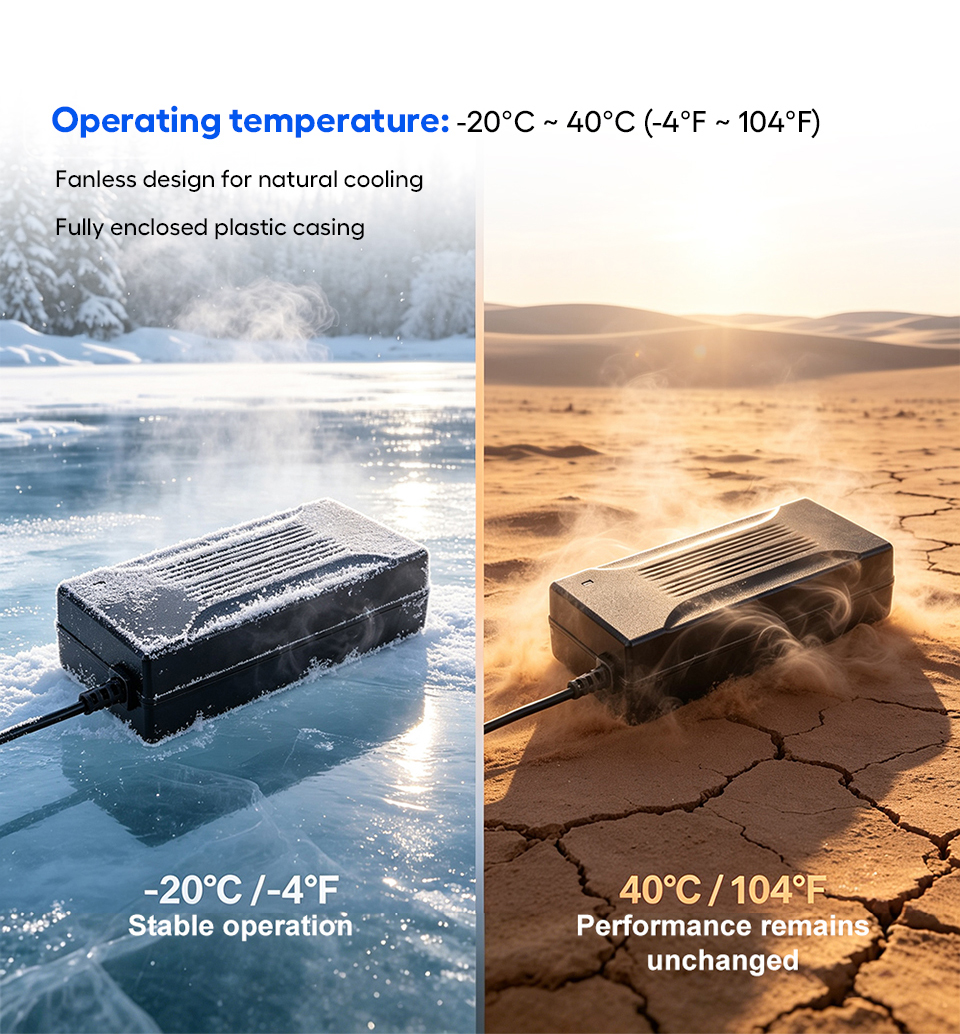

Operating Temperature: -25℃~+40℃
Storage Temperature&Humidity: -40℃~+80℃，10~95%RH
Operating Altitude: 2000m
Safety Standards: EN60335,UL62368
Compatibility(EMC) Standards: FCC Part15,Class B , EN55032

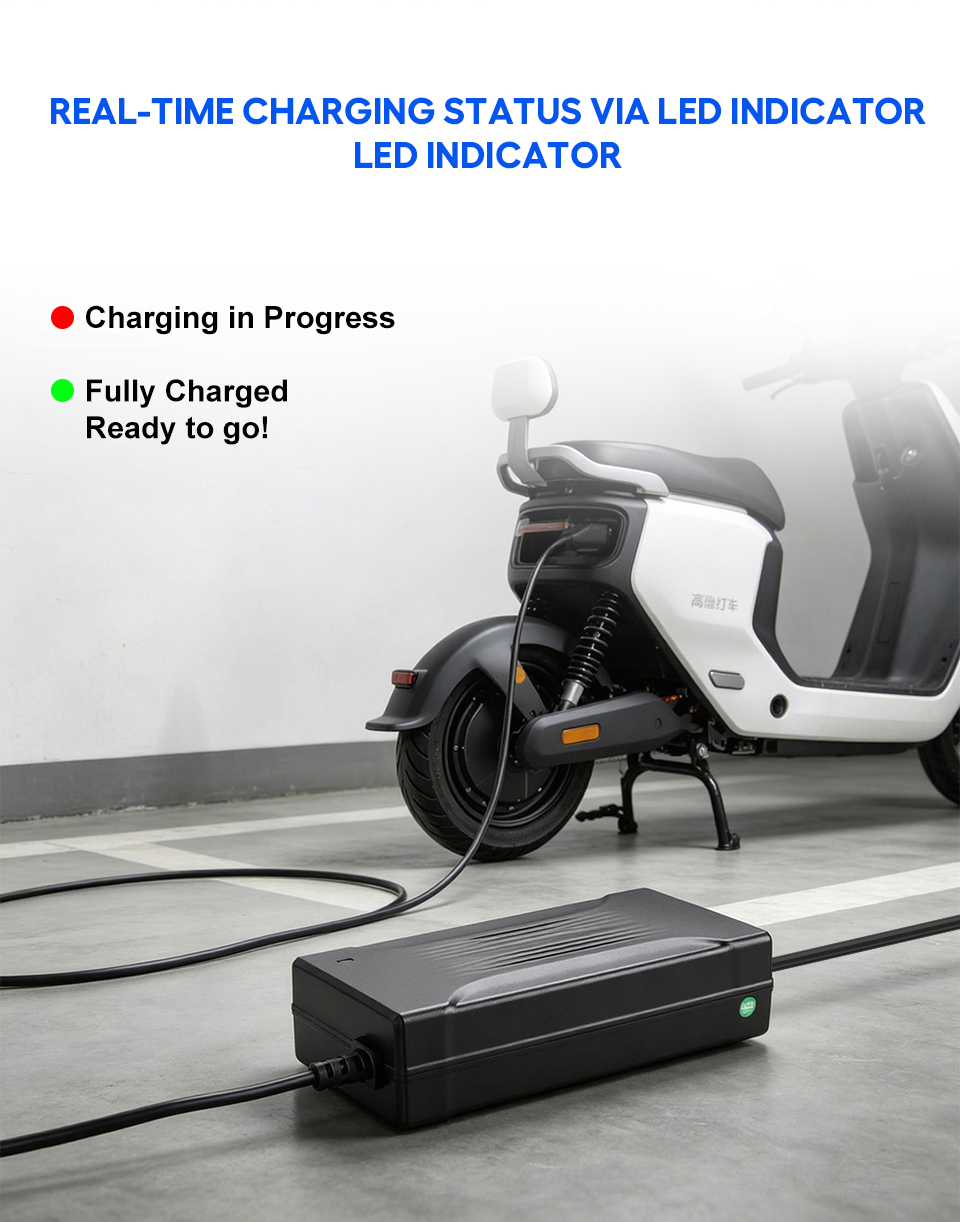

2-Color LED Indicator for Charging Status:

-GREEN LED On: Idle, Waiting for battery connected to
-RED LED On: Charging
-GREEN LED On: Fully Charged

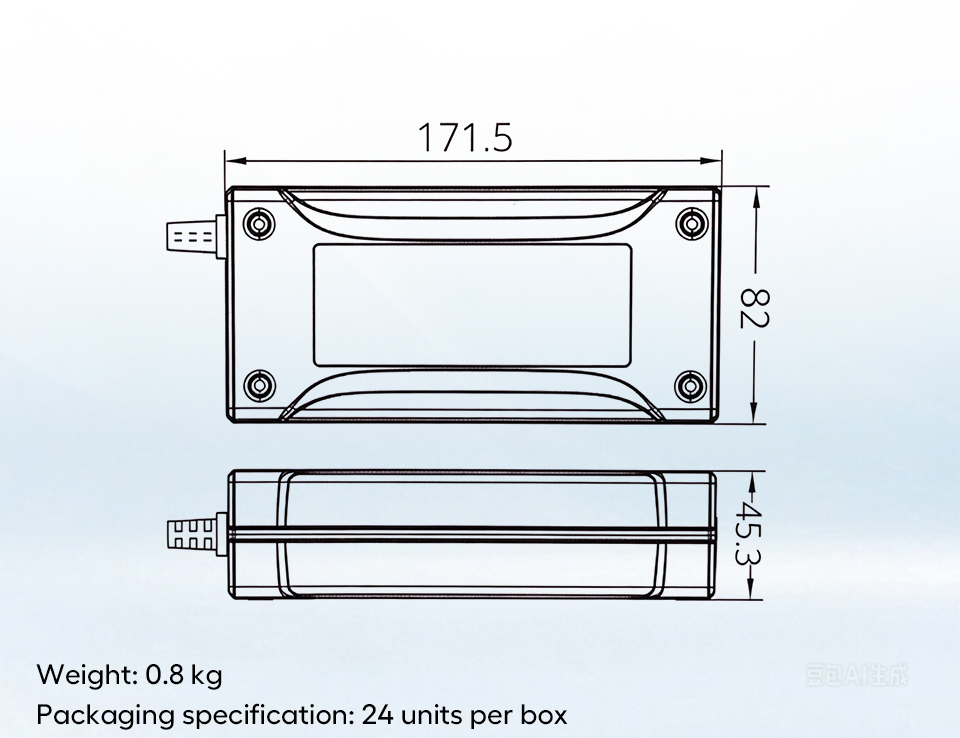

Charger Dimensions: 171.5mm*82mm*45.3mm (L*W*H)

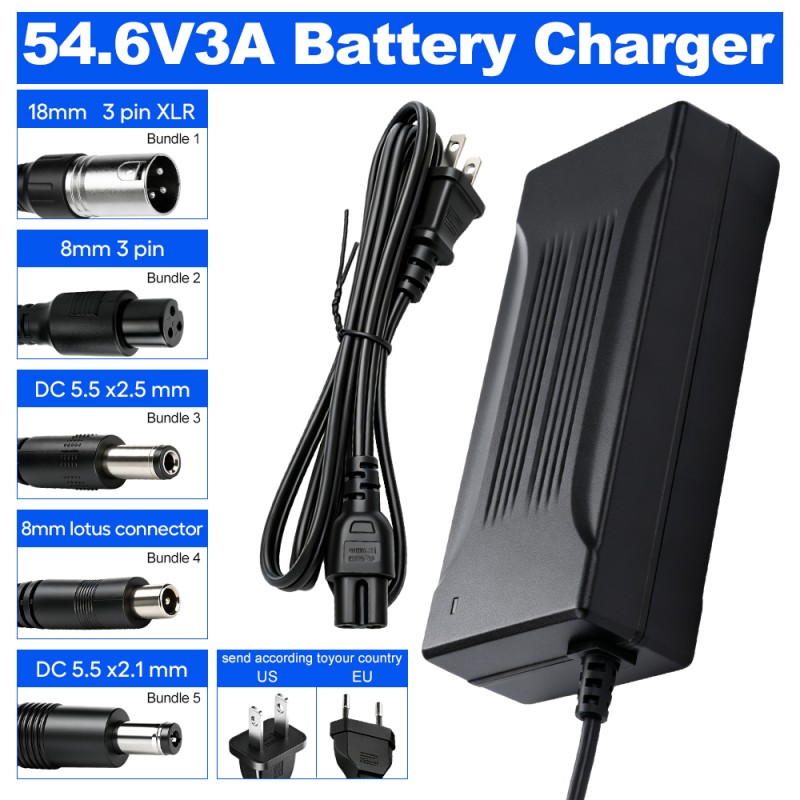

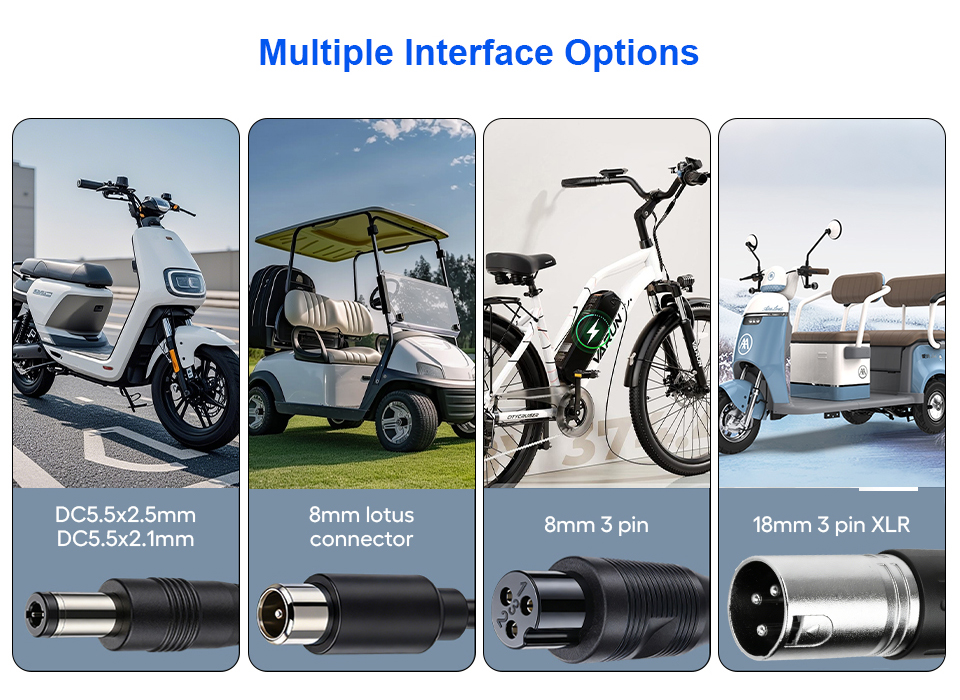

DC Connecter size:

1. DC2.1mm barrel plug
2. DC2.5mm barrel plug
3. 18mm 3pin-XLR male connector
4. 8mm 3prong inline aviation female connector
5. 8mm RCA connector

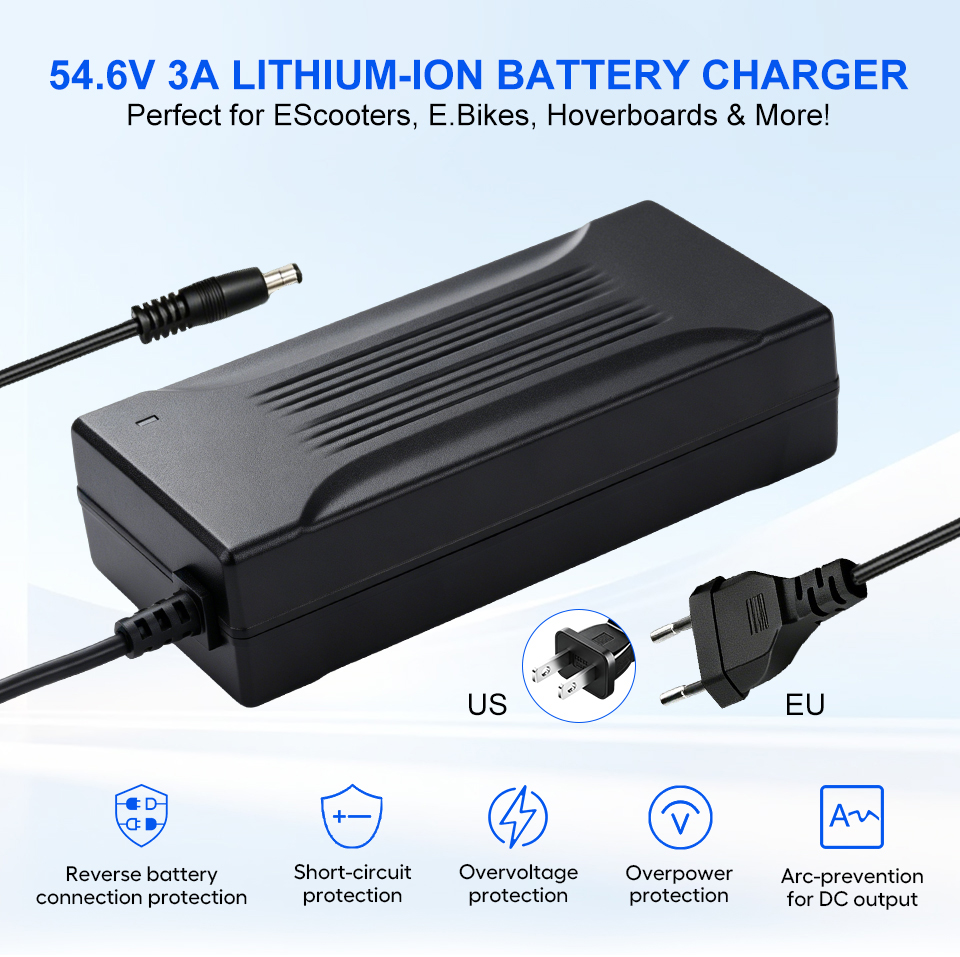

6 Safety Protections

Overcurrent protection, overvoltage protection, short circuit protection, overheating protection, overcharge protection, reverse protection
