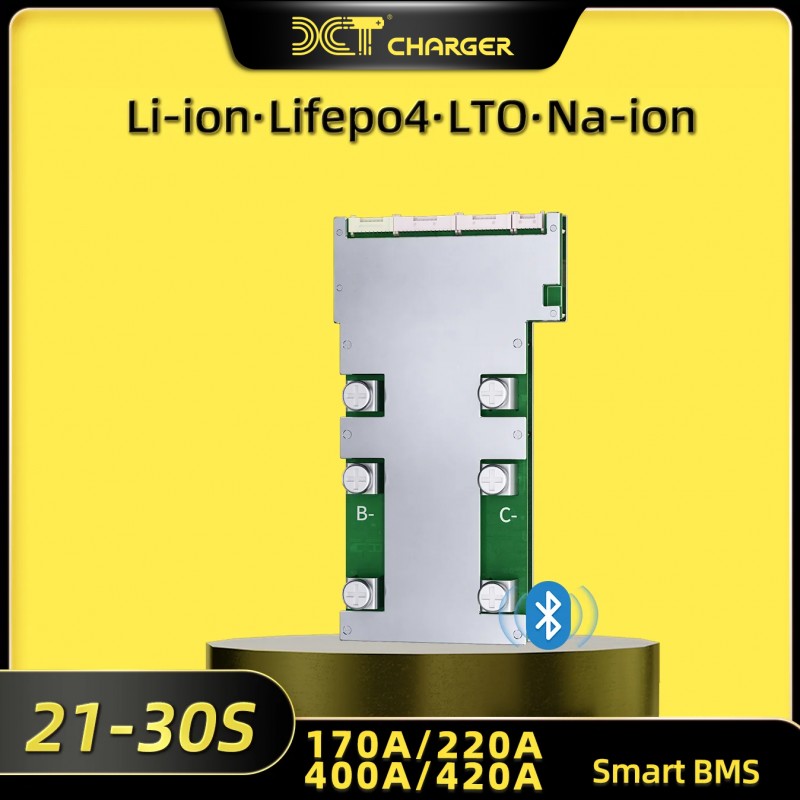

Smart BMS 21-30S 150V High-Voltage 400A 420A LiFePO4/Li-ion/Na-ion Battery Protection Board with Bluetooth for EV, Solar
$117.00
Tax excluded
Smart Bms 21S-30S
Their main functions include individual voltage detection, temperature detection, high voltage detection, battery balancing, CAN/485/TTL/GPRS communication, Bluetooth (mobile app), and sleep/wake capabilities.
Security policy (edit with Customer reassurance module)
Delivery policy (edit with Customer reassurance module)
Return policy (edit with Customer reassurance module)
| Product Name | lithium battery SMART BMS |
| Compatible Series Number | 21S-30S |
| Compatible Battery Types | NCM/LFP/LTO |
| Current Option | 80A/120A |
| Temperature detection | -40~125°C |
| Bluetooth | Support |
| Default Communication | BTTTL |
| APP system | Android/lOS |
| Customizable Communication | RS485/CAN |
| SOC estimation accuracy | Error < 8%(operating conditions) |
| Working Consumption Current | <4mA(no communication)|<15mA(485/CAN) |
| Standby time | 1800 seconds-adjustable |
| Coulomb Counter | Current Integration Method |
Smart Bms 21S-30S
Their main functions include individual voltage detection, temperature detection, high voltage detection, battery balancing, CAN/485/TTL/GPRS communication, Bluetooth (mobile app), and sleep/wake capabilities.
